element <trade> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Trade
Content:
complex, 1 attribute, 14 elements
Defined:
locally within TradeOrTradeReference.model group in fpml-doc-5-13.xsd; see XML source

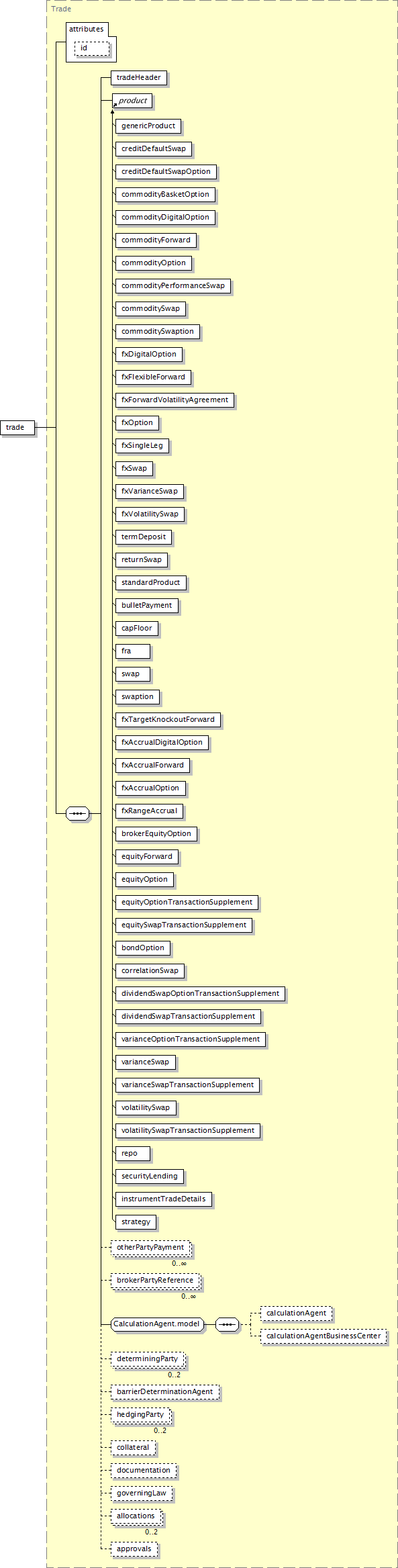

Component Diagram
XML Representation Summary
<trade

id
 =
xsd:ID

>

Content:
tradeHeader, product, otherPartyPayment*, brokerPartyReference*, calculationAgent?, calculationAgentBusinessCenter?, determiningParty[0..2], barrierDeterminationAgent?, hedgingParty[0..2], collateral?, documentation?, governingLaw?, allocations[0..2], approvals?
</trade>
Content model elements (14):
allocations (defined in Trade complexType),
approvals (defined in Trade complexType),
barrierDeterminationAgent,
brokerPartyReference,
calculationAgent (defined in CalculationAgent.model group),
calculationAgentBusinessCenter,
collateral (defined in Trade complexType),
determiningParty,
documentation (defined in Trade complexType),
governingLaw (defined in Trade complexType),
hedgingParty,
otherPartyPayment,
product,
tradeHeader
Included in content model of elements (1):
affectedTransactions
May contain elements by substitutions (49):
bondOption, brokerEquityOption, bulletPayment, capFloor, commodityBasketOption, commodityDigitalOption, commodityForward, commodityOption, commodityPerformanceSwap, commoditySwap, commoditySwaption, correlationSwap, creditDefaultSwap, creditDefaultSwapOption, dividendSwapOptionTransactionSupplement, dividendSwapTransactionSupplement, equityForward, equityOption, equityOptionTransactionSupplement, equitySwapTransactionSupplement, fra, fxAccrualDigitalOption, fxAccrualForward, fxAccrualOption, fxDigitalOption, fxFlexibleForward, fxForwardVolatilityAgreement, fxOption, fxRangeAccrual, fxSingleLeg, fxSwap, fxTargetKnockoutForward, fxVarianceSwap, fxVolatilitySwap, genericProduct, instrumentTradeDetails, repo, returnSwap, securityLending, standardProduct, strategy, swap, swaption, termDeposit, varianceOptionTransactionSupplement, varianceSwap, varianceSwapTransactionSupplement, volatilitySwap, volatilitySwapTransactionSupplement
Annotation
An element that allows the full details of the trade to be used as a mechanism for identifying the trade for which the post-trade event pertains
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="trade" type="Trade"/>
