element <trade> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Trade
Content:
complex, 1 attribute, 14 elements
Defined:
locally within TradeOrInfo.model group in fpml-business-events-5-13.xsd; see XML source

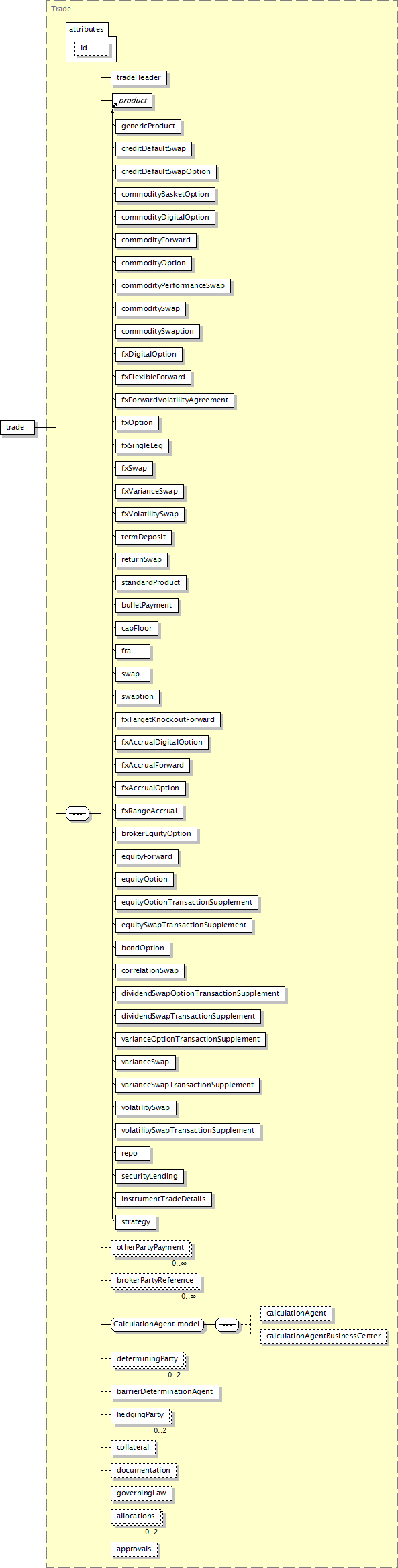

Component Diagram
XML Representation Summary
<trade

id
 =
xsd:ID

>

Content:
tradeHeader, product, otherPartyPayment*, brokerPartyReference*, calculationAgent?, calculationAgentBusinessCenter?, determiningParty[0..2], barrierDeterminationAgent?, hedgingParty[0..2], collateral?, documentation?, governingLaw?, allocations[0..2], approvals?
</trade>
Content model elements (14):
allocations (defined in Trade complexType),
approvals (defined in Trade complexType),
barrierDeterminationAgent,
brokerPartyReference,
calculationAgent (defined in CalculationAgent.model group),
calculationAgentBusinessCenter,
collateral (defined in Trade complexType),
determiningParty,
documentation (defined in Trade complexType),
governingLaw (defined in Trade complexType),
hedgingParty,
otherPartyPayment,
product,
tradeHeader
Included in content model of elements (2):
cleared (in clearing),
submitted
May contain elements by substitutions (49):
bondOption, brokerEquityOption, bulletPayment, capFloor, commodityBasketOption, commodityDigitalOption, commodityForward, commodityOption, commodityPerformanceSwap, commoditySwap, commoditySwaption, correlationSwap, creditDefaultSwap, creditDefaultSwapOption, dividendSwapOptionTransactionSupplement, dividendSwapTransactionSupplement, equityForward, equityOption, equityOptionTransactionSupplement, equitySwapTransactionSupplement, fra, fxAccrualDigitalOption, fxAccrualForward, fxAccrualOption, fxDigitalOption, fxFlexibleForward, fxForwardVolatilityAgreement, fxOption, fxRangeAccrual, fxSingleLeg, fxSwap, fxTargetKnockoutForward, fxVarianceSwap, fxVolatilitySwap, genericProduct, instrumentTradeDetails, repo, returnSwap, securityLending, standardProduct, strategy, swap, swaption, termDeposit, varianceOptionTransactionSupplement, varianceSwap, varianceSwapTransactionSupplement, volatilitySwap, volatilitySwapTransactionSupplement
XML Source (see within schema source)
<xsd:element name="trade" type="Trade"/>
