element <oldTrade> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Trade
Content:
complex, 1 attribute, 14 elements
Defined:
locally within OldTrade.model group in fpml-business-events-5-13.xsd; see XML source

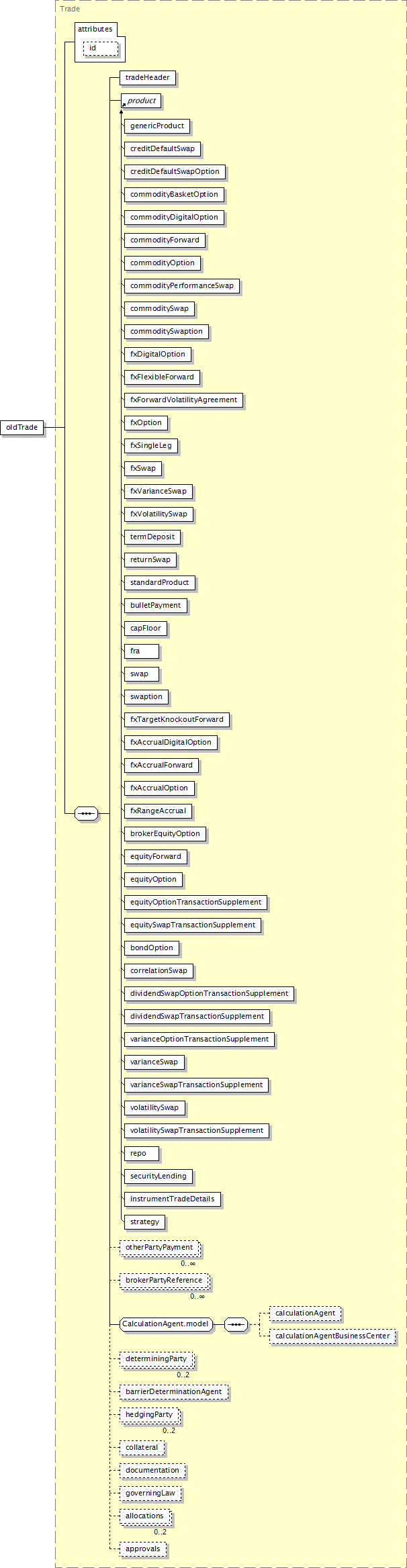

Component Diagram
XML Representation Summary
<oldTrade

id
 =
xsd:ID

>

Content:
tradeHeader, product, otherPartyPayment*, brokerPartyReference*, calculationAgent?, calculationAgentBusinessCenter?, determiningParty[0..2], barrierDeterminationAgent?, hedgingParty[0..2], collateral?, documentation?, governingLaw?, allocations[0..2], approvals?
</oldTrade>
Content model elements (14):
allocations (defined in Trade complexType),
approvals (defined in Trade complexType),
barrierDeterminationAgent,
brokerPartyReference,
calculationAgent (defined in CalculationAgent.model group),
calculationAgentBusinessCenter,
collateral (defined in Trade complexType),
determiningParty,
documentation (defined in Trade complexType),
governingLaw (defined in Trade complexType),
hedgingParty,
otherPartyPayment,
product,
tradeHeader
Included in content model of elements (1):
novation
May contain elements by substitutions (49):
bondOption, brokerEquityOption, bulletPayment, capFloor, commodityBasketOption, commodityDigitalOption, commodityForward, commodityOption, commodityPerformanceSwap, commoditySwap, commoditySwaption, correlationSwap, creditDefaultSwap, creditDefaultSwapOption, dividendSwapOptionTransactionSupplement, dividendSwapTransactionSupplement, equityForward, equityOption, equityOptionTransactionSupplement, equitySwapTransactionSupplement, fra, fxAccrualDigitalOption, fxAccrualForward, fxAccrualOption, fxDigitalOption, fxFlexibleForward, fxForwardVolatilityAgreement, fxOption, fxRangeAccrual, fxSingleLeg, fxSwap, fxTargetKnockoutForward, fxVarianceSwap, fxVolatilitySwap, genericProduct, instrumentTradeDetails, repo, returnSwap, securityLending, standardProduct, strategy, swap, swaption, termDeposit, varianceOptionTransactionSupplement, varianceSwap, varianceSwapTransactionSupplement, volatilitySwap, volatilitySwapTransactionSupplement
Annotation
Indicates the original trade between the transferor and the remaining party.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="oldTrade" type="Trade"/>
