element <swap> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Swap
Content:
complex, 1 attribute, 11 elements
Subst.Gr:
substitutes for product
Defined:
globally in fpml-ird-5-13.xsd; see XML source
Used:
never

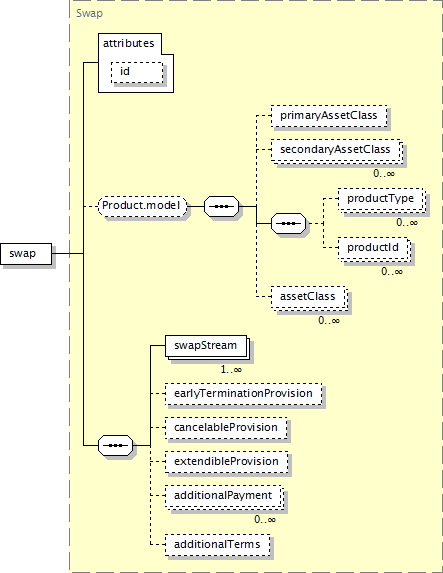

Component Diagram
XML Representation Summary
<swap

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, swapStream+, earlyTerminationProvision?, cancelableProvision?, extendibleProvision?, additionalPayment*, additionalTerms?
</swap>
Content model elements (11):
additionalPayment (defined in Swap complexType),
additionalTerms,
assetClass,
cancelableProvision,
earlyTerminationProvision (defined in Swap complexType),
extendibleProvision,
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass,
swapStream
May be included in elements by substitutions (24):
feeTrade,
newTrade,
oldTrade (defined in TradeChangeContent complexType),
oldTrade (in novation),
originalTrade (defined in OptionExercise complexType),
originalTrade (defined in TradeChangeBase complexType),
originalTrade (in optionEvent),
originalTrade (in optionExpiry defined in OptionsEventsBase.model group),
physicalSettlement (defined in OptionExercise complexType),
physicalSettlement (in noTouch),
physicalSettlement (in touch in optionEvent),
resultingTrade (defined in PhysicalSettlement complexType),
resultingTrade (defined in TradeChangeBase complexType),
strategy,
trade (defined in DataDocument complexType),
trade (defined in TradeAmendmentContent complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
trade (defined in TradePackage complexType),
trade (defined in TradingEventsBase.model group),
trade (in affectedTransactions),
trade (in approvalStatusNotification),
trade (in clearingStatusItem),
trade (in withdrawal)
Annotation
A swap product definition.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="swap" substitutionGroup="product" type="Swap"/>
