element <varianceSwapTransactionSupplement> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	VarianceSwapTransactionSupplement
Content:	complex, 1 attribute, 10 elements
Subst.Gr:	substitutes for product
Defined:	globally in fpml-variance-swaps-5-13.xsd; see XML source
Used:	never

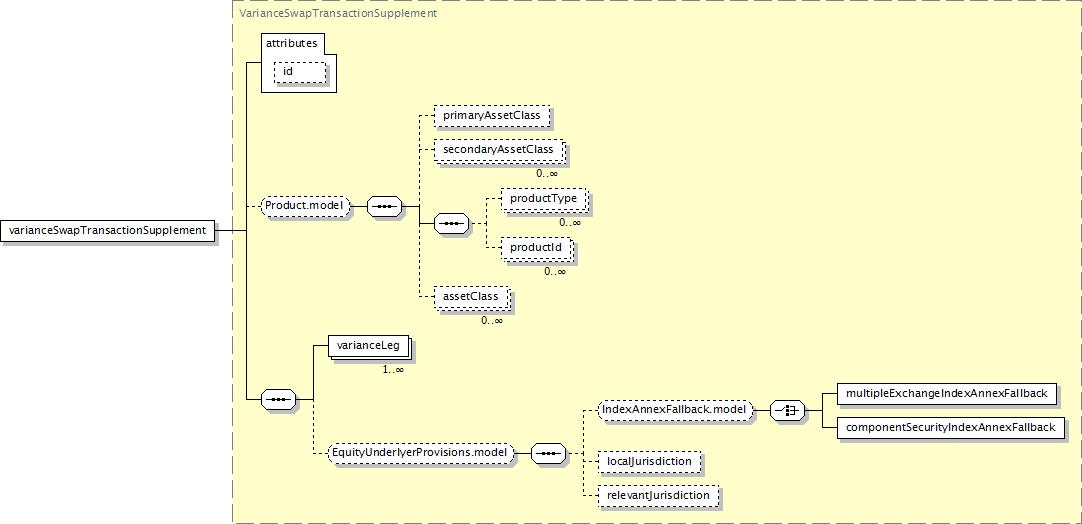

Component Diagram

XML Representation Summary

<varianceSwapTransactionSupplement

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, varianceLeg+, ((multipleExchangeIndexAnnexFallback | componentSecurityIndexAnnexFallback)?, localJurisdiction?, relevantJurisdiction?)?

</varianceSwapTransactionSupplement>

Content model elements (10):

assetClass,

componentSecurityIndexAnnexFallback,

localJurisdiction (defined in EquityUnderlyerProvisions.model group),

multipleExchangeIndexAnnexFallback,

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

relevantJurisdiction,

secondaryAssetClass,

varianceLeg (defined in VarianceSwapTransactionSupplement complexType)

May be included in elements by substitutions (24):

feeTrade,

newTrade,

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade (defined in OptionExercise complexType),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionEvent),

originalTrade (in optionExpiry defined in OptionsEventsBase.model group),

physicalSettlement (defined in OptionExercise complexType),

physicalSettlement (in noTouch),

physicalSettlement (in touch in optionEvent),

resultingTrade (defined in PhysicalSettlement complexType),

resultingTrade (defined in TradeChangeBase complexType),

strategy,

trade (defined in DataDocument complexType),

trade (defined in TradeAmendmentContent complexType),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (defined in TradePackage complexType),

trade (defined in TradingEventsBase.model group),

trade (in affectedTransactions),

trade (in approvalStatusNotification),

trade (in clearingStatusItem),

trade (in withdrawal)

Annotation

Specifies the structure of a variance swap transaction supplement.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="varianceSwapTransactionSupplement" substitutionGroup="product" type="VarianceSwapTransactionSupplement"/>
