complexType "ExchangeTradedOption"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 14 elements
Defined:
globally in fpml-asset-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

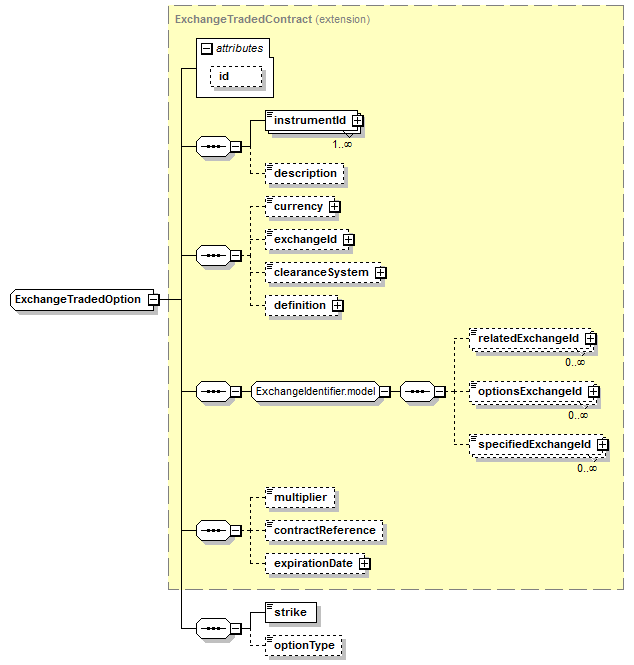

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (14):
clearanceSystem,
contractReference,
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
expirationDate (defined in ExchangeTradedContract complexType),
instrumentId (defined in IdentifiedAsset complexType),
multiplier (defined in ExchangeTradedContract complexType),
optionType (in option),
optionsExchangeId,
relatedExchangeId,
specifiedExchangeId,
strike (in option)
All Direct / Indirect Based Elements (1):
option
Known Usage Locations
Annotation
An exchange traded option.
Type Definition Detail
Type Derivation Tree
Asset (extension)
  IdentifiedAsset (extension)
      UnderlyingAsset (extension)
          ExchangeTraded (extension)
              ExchangeTradedContract (extension)
                  ExchangeTradedOption
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="ExchangeTradedOption">
<xsd:complexContent>
<xsd:extension base="ExchangeTradedContract">
<xsd:sequence>
<xsd:element name="strike" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="optionType" type="PutCallEnum"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/14)
optionType
Type:
PutCallEnum, simple content
Specifies whether the option allows the hodler to buy or sell tne underlying asset.
Simple Content
enumeration of xsd:token
Enumeration:
"Put"
 -
A put option gives the holder the right to sell the underlying asset by a certain date for a certain price.
"Call"
 -
A call option gives the holder the right to buy the underlying asset by a certain date for a certain price.
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="optionType" type="PutCallEnum"/>
strike
Type:
xsd:decimal, predefined, simple content
Specifies the price at which the option can be exercised.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="strike" type="xsd:decimal"/>
