complexType "TradeNovationContent"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 34 elements
Defined:	globally in fpml-business-events-5-8.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

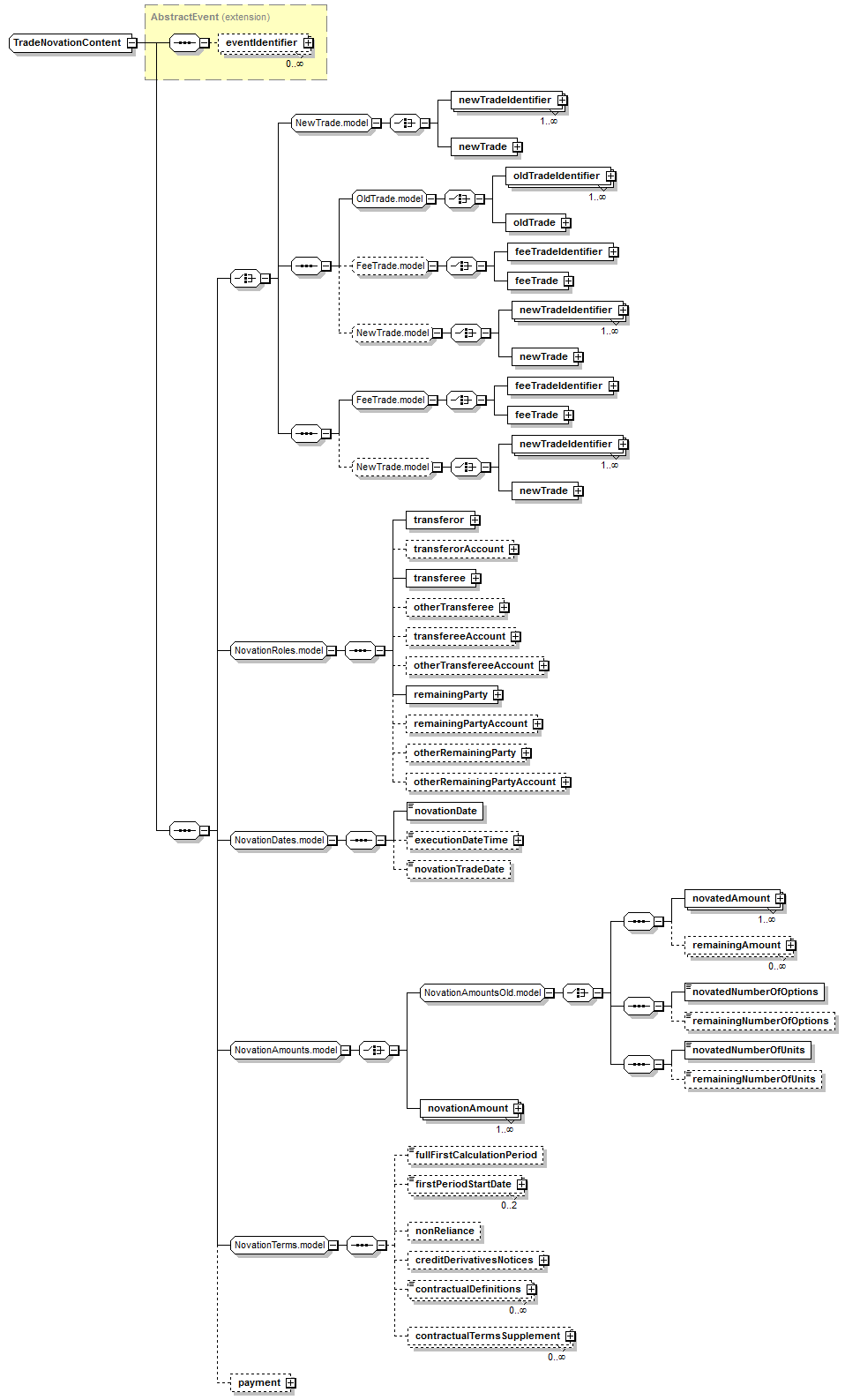

Content Model Diagram

XML Representation Summary

<...>

Content:

eventIdentifier*, (newTradeIdentifier+ | newTrade | ((oldTradeIdentifier+ | oldTrade), (feeTradeIdentifier | feeTrade)?, (newTradeIdentifier+ | newTrade)?) | ((feeTradeIdentifier | feeTrade), (newTradeIdentifier+ | newTrade)?)), transferor, transferorAccount?, transferee, otherTransferee?, transfereeAccount?, otherTransfereeAccount?, remainingParty, remainingPartyAccount?, otherRemainingParty?, otherRemainingPartyAccount?, novationDate, executionDateTime?, novationTradeDate?, ((novatedAmount+, remainingAmount*) | (novatedNumberOfOptions, remainingNumberOfOptions?) | (novatedNumberOfUnits, remainingNumberOfUnits?) | novationAmount+), fullFirstCalculationPeriod?, firstPeriodStartDate[0..2], nonReliance?, creditDerivativesNotices?, contractualDefinitions*, contractualTermsSupplement*, payment?

</...>

Content Model Elements (34):

contractualDefinitions (in novation),

contractualTermsSupplement (in novation),

creditDerivativesNotices,

eventIdentifier (defined in AbstractEvent complexType),

executionDateTime (in novation),

feeTrade,

feeTradeIdentifier,

firstPeriodStartDate (in novation),

fullFirstCalculationPeriod,

newTrade,

newTradeIdentifier,

nonReliance (in novation),

novatedAmount,

novatedNumberOfOptions,

novatedNumberOfUnits,

novationAmount,

novationDate,

novationTradeDate,

oldTrade (in novation),

oldTradeIdentifier (in novation),

otherRemainingParty,

otherRemainingPartyAccount,

otherTransferee,

otherTransfereeAccount,

payment (in novation),

remainingAmount,

remainingNumberOfOptions,

remainingNumberOfUnits,

remainingParty,

remainingPartyAccount,

All Direct / Indirect Based Elements (1):

novation

Known Usage Locations

As direct type of elements (1):

novation

Annotation

A structure describing a novation.

Type Definition Detail

Type Derivation Tree

AbstractEvent (extension)

TradeNovationContent

XML Source (w/o annotations (7); see within schema source)

<xsd:complexType name="TradeNovationContent">

<xsd:complexContent>

<xsd:extension base="AbstractEvent">

<xsd:sequence>

<xsd:choice>

<xsd:group ref="NewTrade.model"/>

<xsd:sequence>

<xsd:group ref="OldTrade.model"/>

<xsd:group minOccurs="0" ref="FeeTrade.model"/>

<xsd:group minOccurs="0" ref="NewTrade.model"/>

</xsd:sequence>

<xsd:sequence>

<xsd:group ref="FeeTrade.model"/>

<xsd:group minOccurs="0" ref="NewTrade.model"/>

</xsd:sequence>

</xsd:choice>

<xsd:group ref="NovationRoles.model"/>

<xsd:group ref="NovationDates.model"/>

<xsd:group ref="NovationAmounts.model"/>

<xsd:group ref="NovationTerms.model"/>

<xsd:element minOccurs="0" name="payment" type="Payment"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/34)

payment

Type:

Payment, complex content

Describes a payment made in settlement of the novation.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="payment" type="Payment"/>
