complexType "ConfirmationAgreed"
Namespace:
Content:
complex, 3 attributes, 20 elements
Defined:
Includes:
definition of 1 element
Used:

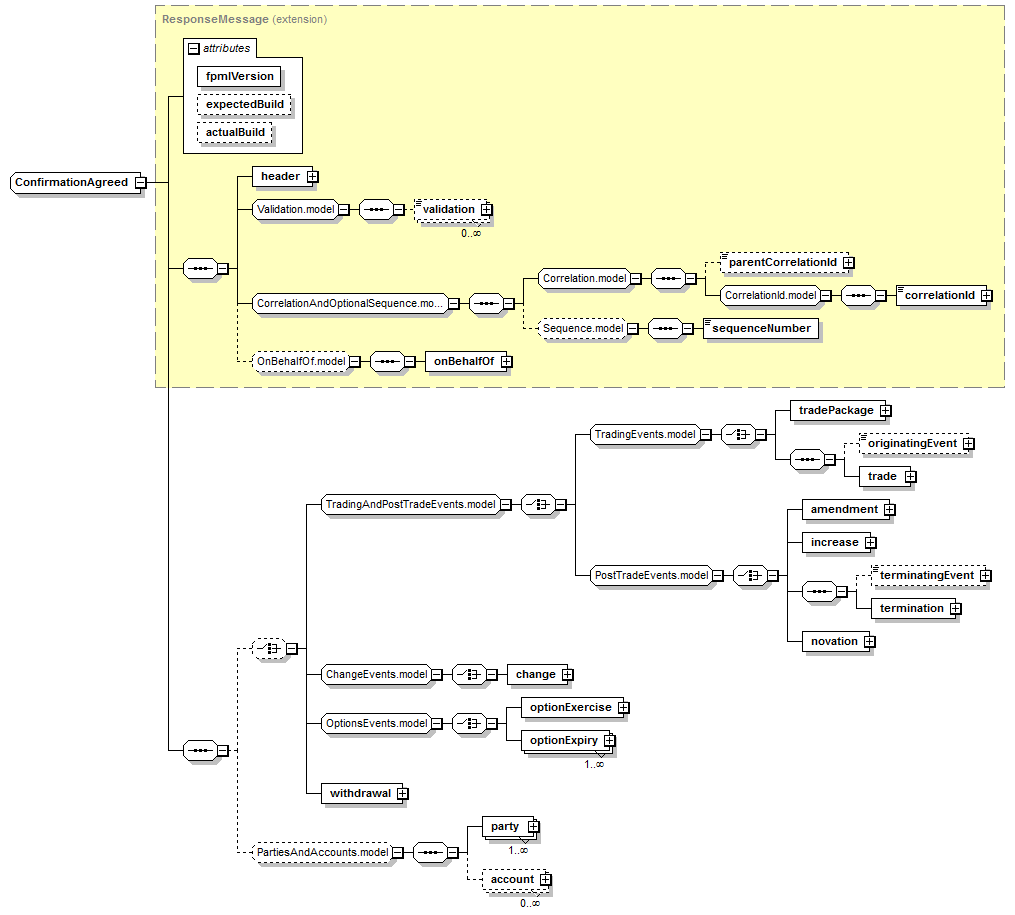

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (20):
amendment (defined in PostTradeEvents.model group),
change (defined in ChangeEvents.model group),
header (defined in ResponseMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
optionExpiry (defined in OptionsEvents.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
trade (defined in TradingEvents.model group),
tradePackage (defined in TradingEvents.model group),
All Direct / Indirect Based Elements (1):
confirmationAgreed
Known Usage Locations
Annotation
A message indicating that a confirmation has been agreed by a counterparty.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      ResponseMessage (extension)
          ConfirmationAgreed
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="ConfirmationAgreed">
<xsd:complexContent>
<xsd:extension base="ResponseMessage">
<xsd:sequence>
<!--<xsd:group ref="Events.model" minOccurs="0"/> BPWG2014 Replaced by the below - comment to be deleted before 5.8LCWD -->
<xsd:choice minOccurs="0">
<xsd:group ref="TradingAndPostTradeEvents.model"/>
<xsd:group ref="ChangeEvents.model"/>
<xsd:group ref="OptionsEvents.model"/>
<xsd:element name="withdrawal" type="Withdrawal"/>
</xsd:choice>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/20)
withdrawal
Type:
Withdrawal, complex content
XML Source (see within schema source)
<xsd:element name="withdrawal" type="Withdrawal"/>
