complexType "ResponseMessage"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 6 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-msg-5-8.xsd; see XML source
Includes:	definition of 1 element
Used:	at 12 locations

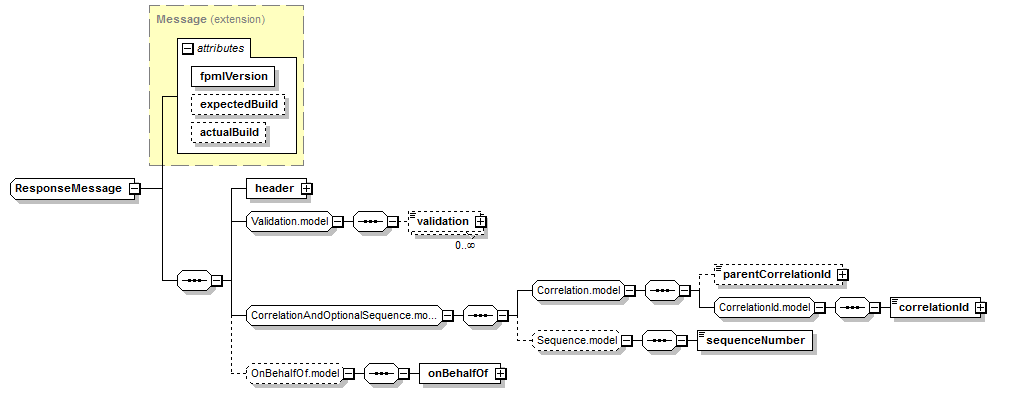

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"3"

Content:

header, validation*, parentCorrelationId?, correlationId, sequenceNumber?, onBehalfOf?

</...>

Content Model Elements (6):

correlationId,

header (defined in ResponseMessage complexType),

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

sequenceNumber (defined in Sequence.model group),

validation

Known Direct Subtypes (12):

Acknowledgement, AllocationApproved, AllocationRefused, ClearingEligibility, CollateralAllocationAccepted, ConfirmationAgreed, ConfirmationDisputed, ConfirmationStatus, ConsentGranted, ConsentRefused, EventRequestAcknowledgement, EventStatusResponse

All Direct / Indirect Based Elements (23):

Known Usage Locations

In derivations of other global types (12):

Acknowledgement (as extension base),

AllocationApproved (as extension base),

AllocationRefused (as extension base),

ClearingEligibility (as extension base),

CollateralAllocationAccepted (as extension base),

ConfirmationAgreed (as extension base),

ConfirmationDisputed (as extension base),

ConfirmationStatus (as extension base),

ConsentGranted (as extension base),

ConsentRefused (as extension base),

EventRequestAcknowledgement (as extension base),

EventStatusResponse (as extension base)

Annotation

A type refining the generic message content model to make it specific to response messages.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

ResponseMessage

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType abstract="true" name="ResponseMessage">

<xsd:complexContent>

<xsd:extension base="Message">

<xsd:sequence>

<xsd:element name="header" type="ResponseMessageHeader"/>

<xsd:group ref="Validation.model"/>

<xsd:group ref="CorrelationAndOptionalSequence.model"/>

<xsd:group minOccurs="0" ref="OnBehalfOf.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/6)

header

Type:

ResponseMessageHeader, complex content

XML Source (see within schema source)

<xsd:element name="header" type="ResponseMessageHeader"/>
