complexType "ConfirmationDisputed"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 21 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

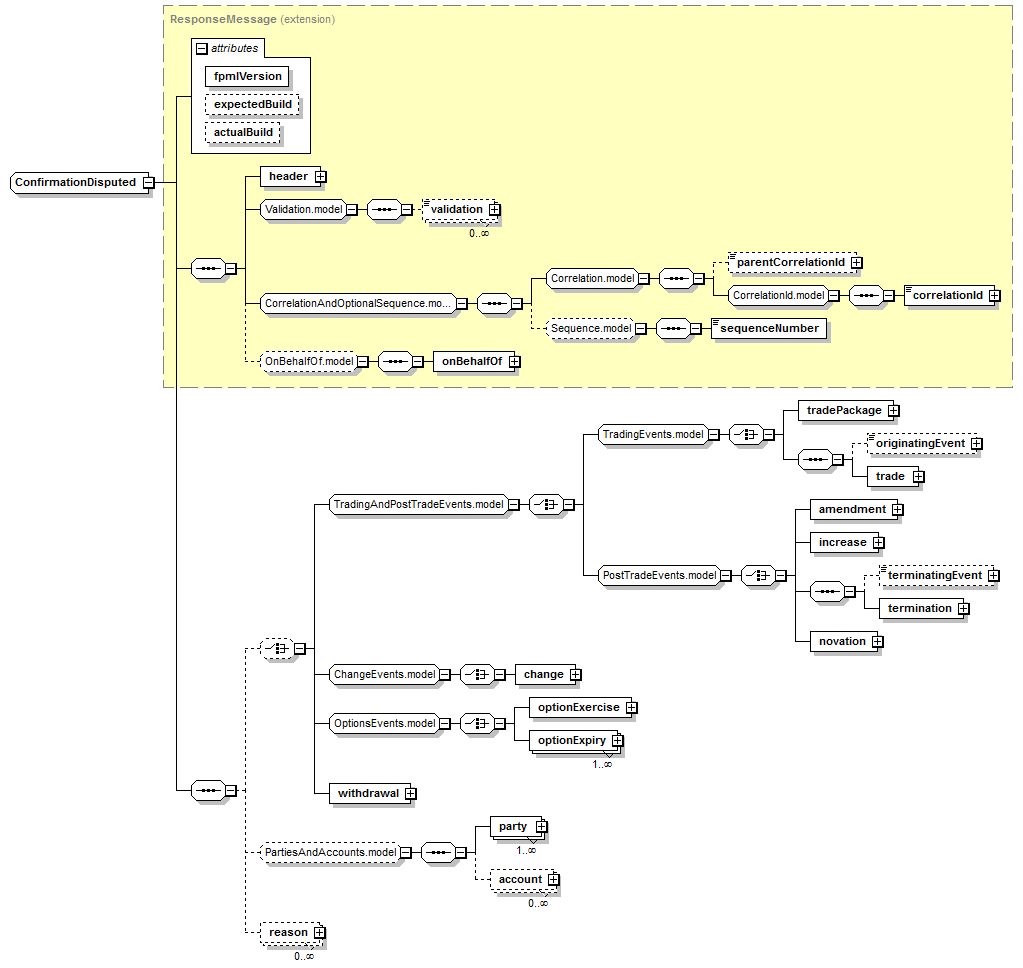

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (21):
amendment (defined in PostTradeEvents.model group),
change (defined in ChangeEvents.model group),
header (defined in ResponseMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
optionExpiry (defined in OptionsEvents.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
trade (defined in TradingEvents.model group),
tradePackage (defined in TradingEvents.model group),
All Direct / Indirect Based Elements (1):
confirmationDisputed
Known Usage Locations
Annotation
A message indicating that a confirmation has not been agreed by a counterparty.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      ResponseMessage (extension)
          ConfirmationDisputed
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="ConfirmationDisputed">
<xsd:complexContent>
<xsd:extension base="ResponseMessage">
<xsd:sequence>
<!--<xsd:group ref="Events.model" minOccurs="0"/> BPWG2014 Replaced by the below - comment to be deleted before 5.8LCWD -->
<xsd:choice minOccurs="0">
<xsd:group ref="TradingAndPostTradeEvents.model"/>
<xsd:group ref="ChangeEvents.model"/>
<xsd:group ref="OptionsEvents.model"/>
<xsd:element name="withdrawal" type="Withdrawal"/>
</xsd:choice>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reason" type="Reason"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/21)
reason
Type:
Reason, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reason" type="Reason"/>
withdrawal
Type:
Withdrawal, complex content
XML Source (see within schema source)
<xsd:element name="withdrawal" type="Withdrawal"/>
