complexType "VerificationStatusNotification"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 11 elements
Defined:
globally in fpml-msg-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

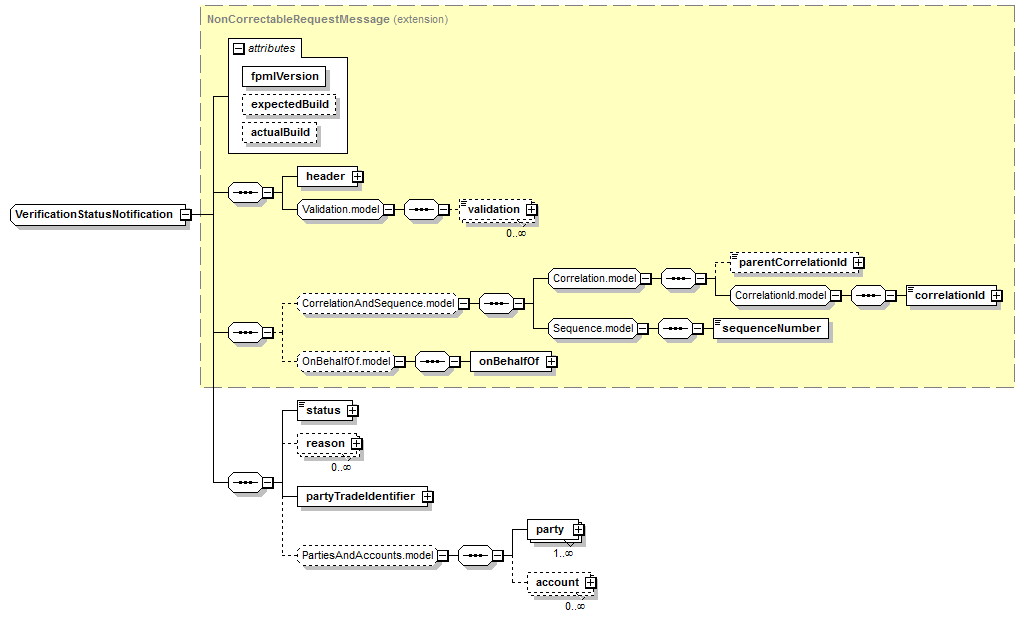

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (11):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
verificationStatusNotification
Known Usage Locations
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          NonCorrectableRequestMessage (extension)
              VerificationStatusNotification
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="VerificationStatusNotification">
<xsd:complexContent>
<xsd:extension base="NonCorrectableRequestMessage">
<xsd:sequence>
<xsd:element name="status" type="VerificationStatus"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reason" type="Reason"/>
<xsd:element name="partyTradeIdentifier" type="PartyTradeIdentifier"/>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/11)
partyTradeIdentifier
Type:
PartyTradeIdentifier, complex content
XML Source (see within schema source)
<xsd:element name="partyTradeIdentifier" type="PartyTradeIdentifier"/>
reason
Type:
Reason, complex content
The reason for any dispute or change in verification status.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reason" type="Reason"/>
status
Type:
VerificationStatus, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element name="status" type="VerificationStatus"/>
