complexType "SimplePayment"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 6 elements
Defined:	globally in fpml-shared-5-8.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 7 locations

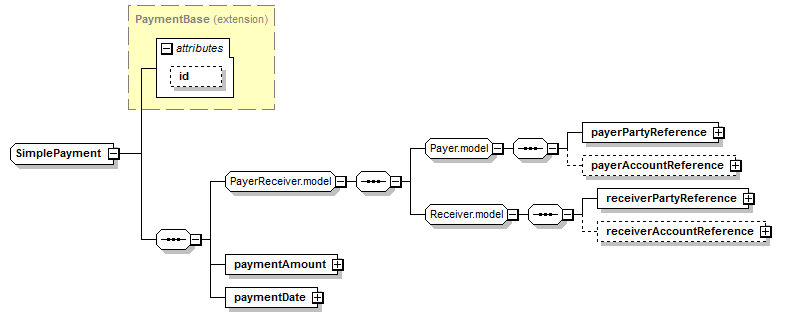

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentAmount, paymentDate

</...>

Content Model Elements (6):

payerAccountReference,

payerPartyReference (defined in Payer.model group),

paymentAmount (defined in SimplePayment complexType),

paymentDate (defined in SimplePayment complexType),

receiverAccountReference,

receiverPartyReference (defined in Receiver.model group)

Known Direct Subtypes (1):

Premium

All Direct / Indirect Based Elements (7):

additionalPayment (in fxAccrualForward),

additionalPayment (in fxTargetForward),

cashSettlement (defined in OptionExercise complexType),

initialFee,

payment (in rebate),

premium (defined in GenericProduct complexType),

premium (defined in OptionBaseExtended complexType)

Known Usage Locations

In derivations of other global types (1):

Premium (as extension base)

As direct type of elements (6):

additionalPayment (in fxAccrualForward),

additionalPayment (in fxTargetForward),

cashSettlement (defined in OptionExercise complexType),

initialFee,

payment (in rebate),

premium (defined in GenericProduct complexType)

Annotation

A complex type to specified payments in a simpler fashion than the Payment type. This construct should be used from the version 4.3 onwards.

Type Definition Detail

Type Derivation Tree

PaymentBase (extension)

SimplePayment

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="SimplePayment">

<xsd:complexContent>

<xsd:extension base="PaymentBase">

<xsd:sequence>

<xsd:group ref="PayerReceiver.model"/>

<xsd:element name="paymentAmount" type="NonNegativeMoney"/>

<xsd:element name="paymentDate" type="AdjustableOrRelativeDate"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/6)

paymentAmount

Type:

NonNegativeMoney, complex content

XML Source (see within schema source)

<xsd:element name="paymentAmount" type="NonNegativeMoney"/>

paymentDate

Type:

AdjustableOrRelativeDate, complex content

The payment date. This date is subject to adjustment in accordance with any applicable business day convention.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="paymentDate" type="AdjustableOrRelativeDate"/>
