element <product> (global abstract)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
Product
Content:
complex, 1 attribute, 6 elements
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
may be substituted with 48 elements
Defined:
globally in fpml-shared-5-10.xsd; see XML source
Used:
at 51 locations

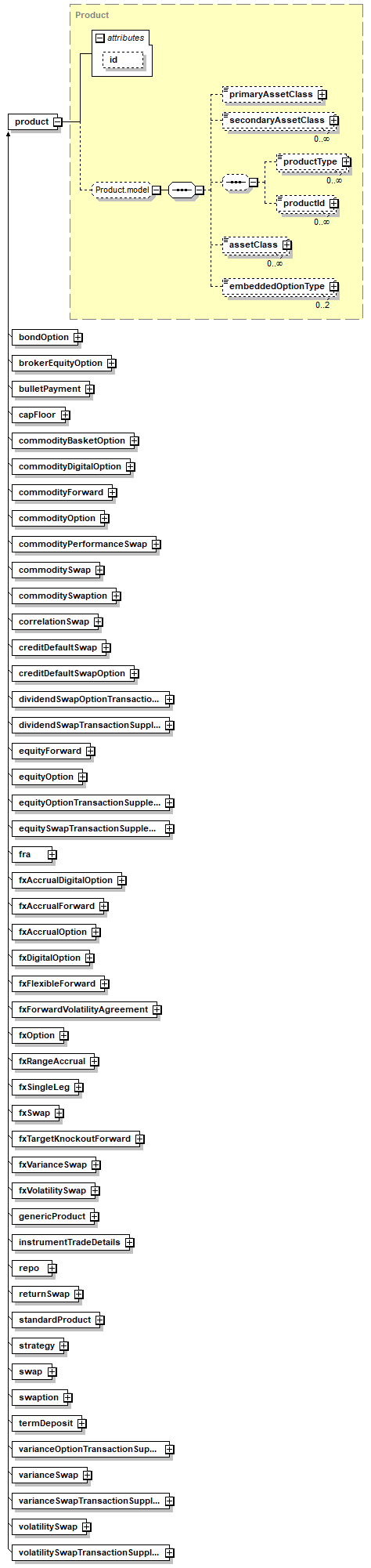

Content Model Diagram
XML Representation Summary
<product

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, (productType*, productId*)?, assetClass*, embeddedOptionType[0..2])?
</product>
Content model elements (6):
assetClass (defined in Product.model group),
primaryAssetClass (defined in Product.model group),
productId (defined in Product.model group),
productType (defined in Product.model group),
Included in content model of elements (26):
oldTrade (defined in OldTrade.model group),
oldTrade (defined in TradeChangeContent complexType),
originalTrade (defined in OptionExercise complexType),
originalTrade (defined in OptionExpiry complexType),
originalTrade (defined in TradeChangeBase complexType),
physicalSettlement (defined in OptionExercise complexType),
resultingTrade (defined in PhysicalSettlement complexType),
resultingTrade (defined in TradeChangeBase complexType),
trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in PositionConstituent complexType),
trade (defined in TradeAmendmentContent complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradePackage complexType),
trade (defined in TradeValuationItem complexType),
trade (defined in Withdrawal complexType),
May be substituted with elements (48):
bondOption, brokerEquityOption, bulletPayment, capFloor, commodityBasketOption, commodityDigitalOption, commodityForward, commodityOption, commodityPerformanceSwap, commoditySwap, commoditySwaption, correlationSwap, creditDefaultSwap, creditDefaultSwapOption, dividendSwapOptionTransactionSupplement, dividendSwapTransactionSupplement, equityForward, equityOption, equityOptionTransactionSupplement, equitySwapTransactionSupplement, fra, fxAccrualDigitalOption, fxAccrualForward, fxAccrualOption, fxDigitalOption, fxFlexibleForward, fxForwardVolatilityAgreement, fxOption, fxRangeAccrual, fxSingleLeg, fxSwap, fxTargetKnockoutForward, fxVarianceSwap, fxVolatilitySwap, genericProduct, instrumentTradeDetails, repo, returnSwap, standardProduct, strategy, swap, swaption, termDeposit, varianceOptionTransactionSupplement, varianceSwap, varianceSwapTransactionSupplement, volatilitySwap, volatilitySwapTransactionSupplement
Known Usage Locations
Annotation
An abstract element used as a place holder for the substituting product elements.
XML Source (w/o annotations (1); see within schema source)
<xsd:element abstract="true" name="product" type="Product"/>
