complexType "FloatingPriceLeg"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 22 elements
Defined:	globally in fpml-com-5-8.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 1 location

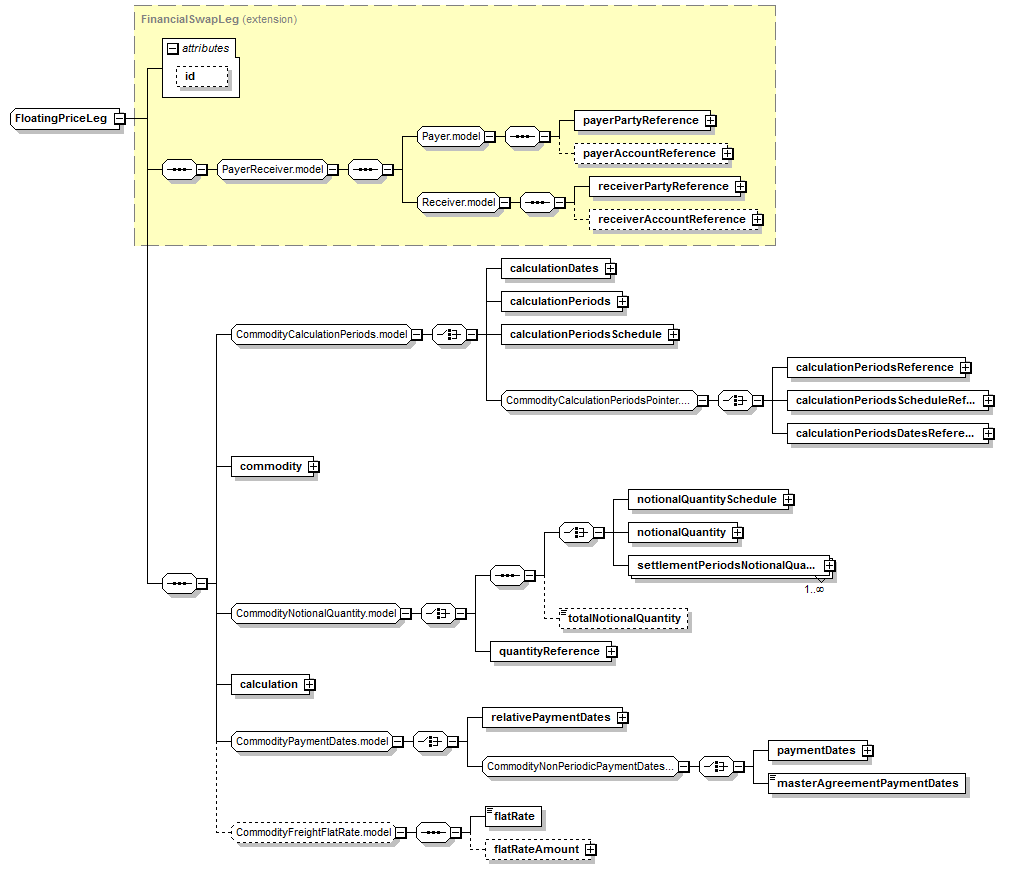

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, (calculationDates | calculationPeriods | calculationPeriodsSchedule | calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference), commodity, (((notionalQuantitySchedule | notionalQuantity | settlementPeriodsNotionalQuantity+), totalNotionalQuantity?) | quantityReference), calculation, (relativePaymentDates | paymentDates | masterAgreementPaymentDates), (flatRate, flatRateAmount?)?

</...>

Content Model Elements (22):

calculation (in floatingLeg),

calculationDates (defined in CommodityCalculationPeriods.model group),

calculationPeriods (defined in CommodityCalculationPeriods.model group),

calculationPeriodsDatesReference,

calculationPeriodsReference,

calculationPeriodsSchedule (defined in CommodityCalculationPeriods.model group),

calculationPeriodsScheduleReference,

commodity (in floatingLeg),

flatRate,

flatRateAmount,

masterAgreementPaymentDates,

notionalQuantity (defined in CommodityNotionalQuantity.model group),

notionalQuantitySchedule,

payerAccountReference,

payerPartyReference (defined in Payer.model group),

paymentDates (defined in CommodityNonPeriodicPaymentDates.model group),

quantityReference (defined in CommodityNotionalQuantity.model group),

receiverAccountReference,

receiverPartyReference (defined in Receiver.model group),

relativePaymentDates,

settlementPeriodsNotionalQuantity,

totalNotionalQuantity (defined in CommodityNotionalQuantity.model group)

All Direct / Indirect Based Elements (1):

floatingLeg

Known Usage Locations

As direct type of elements (1):

floatingLeg

Annotation

Floating Price Leg of a Commodity Swap. Each 'floatingLeg' defines a series of financial payments for a commodity the value of which is derived from a floating price such as an exchange or an index publication.

Type Definition Detail

Type Derivation Tree

Leg (extension)

CommoditySwapLeg (extension)

FinancialSwapLeg (extension)

FloatingPriceLeg

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="FloatingPriceLeg">

<xsd:complexContent>

<xsd:extension base="FinancialSwapLeg">

<xsd:sequence>

<xsd:group ref="CommodityCalculationPeriods.model"/>

<xsd:element name="commodity" type="Commodity"/>

<xsd:group ref="CommodityNotionalQuantity.model"/>

<xsd:element name="calculation" type="FloatingLegCalculation"/>

<xsd:group ref="CommodityPaymentDates.model"/>

<xsd:group minOccurs="0" ref="CommodityFreightFlatRate.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/22)

calculation

Type:

FloatingLegCalculation, complex content

Defines details relevant to the calculation of the floating price.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="calculation" type="FloatingLegCalculation"/>

commodity

Type:

Commodity, complex content

Specifies the underlying instrument. Only underlyers of type Commodity are supported.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="commodity" type="Commodity"/>
