complexType "ElectricityPhysicalLeg"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 11 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 7 elements
Used:
at 1 location

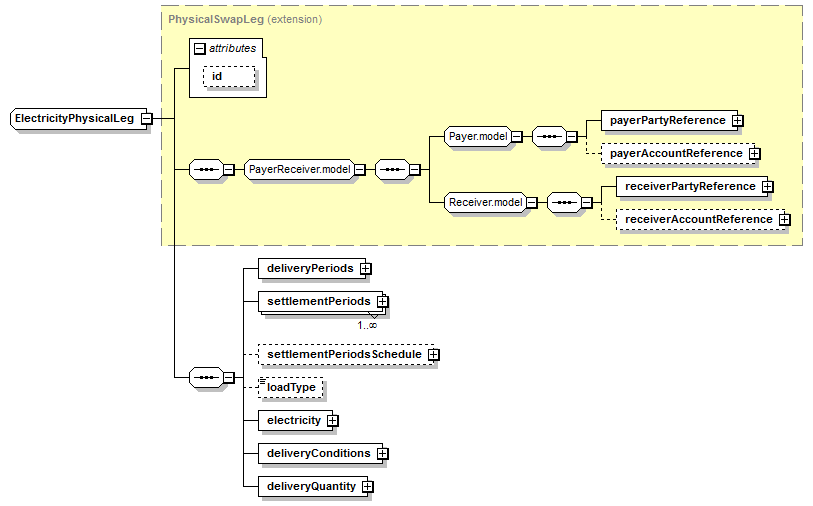

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (11):
payerPartyReference (defined in Payer.model group),
All Direct / Indirect Based Elements (1):
electricityPhysicalLeg
Known Usage Locations
Annotation
Physically settled leg of a physically settled electricity transaction.
Type Definition Detail
Type Derivation Tree
Leg (extension)
  CommoditySwapLeg (extension)
      PhysicalSwapLeg (extension)
          ElectricityPhysicalLeg
XML Source (w/o annotations (8); see within schema source)
<xsd:complexType name="ElectricityPhysicalLeg">
<xsd:complexContent>
<xsd:extension base="PhysicalSwapLeg">
<xsd:sequence>
<xsd:element name="deliveryPeriods" type="CommodityDeliveryPeriods"/>
<xsd:element maxOccurs="unbounded" name="settlementPeriods" type="SettlementPeriods"/>
<xsd:element minOccurs="0" name="settlementPeriodsSchedule" type="SettlementPeriodsSchedule"/>
<xsd:element minOccurs="0" name="loadType" type="LoadTypeEnum"/>
<xsd:element name="electricity" type="ElectricityProduct"/>
<xsd:element name="deliveryConditions" type="ElectricityDelivery"/>
<xsd:element name="deliveryQuantity" type="ElectricityPhysicalQuantity"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 7/11)
deliveryConditions
Type:
ElectricityDelivery, complex content
The physical delivery conditions for the transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryConditions" type="ElectricityDelivery"/>
deliveryPeriods
Type:
CommodityDeliveryPeriods, complex content
The different options for specifying the Delivery or Supply Periods. Unless the quantity or price is to vary periodically during the trade or physical delivery occurs on a periodic basis, periodsSchedule should be used and set to 1T.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryPeriods" type="CommodityDeliveryPeriods"/>
deliveryQuantity
Type:
ElectricityPhysicalQuantity, complex content
The different options for specifying the quantity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryQuantity" type="ElectricityPhysicalQuantity"/>
electricity
Type:
ElectricityProduct, complex content
The specification of the electricity to be delivered.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="electricity" type="ElectricityProduct"/>
loadType
Type:
LoadTypeEnum, simple content
LoadType is a summary of the full description of the settlement periods with respect to the region. Used for describing Electricity delivery schedules (e.g. Base, Peak, Off-Peak, Custom).
Simple Content
enumeration of xsd:token
Enumeration:
"Base"
 -
Base
"Peak"
 -
Peak
"OffPeak"
 -
Off-Peak
"BlockHours"
 -
Block Hours
"Custom"
 -
Anything that does not fall under the predefined standard categories
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="loadType" type="LoadTypeEnum"/>
settlementPeriods
Type:
SettlementPeriods, complex content
The specification of the Settlement Periods in which the electricity will be delivered. The Settlement Periods will apply from and including the Effective Date up to and including the Termination Date. If more than one settlementPeriods element is present this indicates multiple ranges of Settlement Periods apply to the entire trade - for example off-peak weekdays and all day weekends. Settlement Period ranges should not overlap.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="settlementPeriods" type="SettlementPeriods"/>
settlementPeriodsSchedule
Type:
SettlementPeriodsSchedule, complex content
The specification of the Settlement Periods in which the electricity will be delivered for a "shaped" trade i.e. where different Settlement Period ranges will apply to different periods of the trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="settlementPeriodsSchedule" type="SettlementPeriodsSchedule"/>
